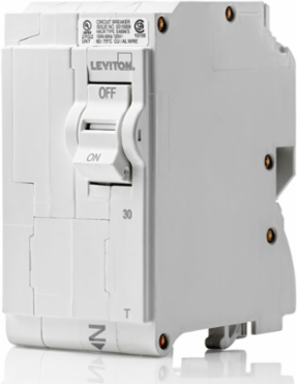

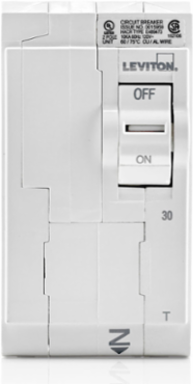

Leviton LB230-T 30A 2-Pole Thermal Magnetic Circuit Breaker, 120/208V & 120/240V, Plug-On Installation
- MPN: LB230-T
- UPC: 078477644683
- PPN: LEV-LB230-T
CAD
$30.73
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30A 2-Pole Standard Branch Circuit Breaker with Thermal Magnetic Trip Technology and Plug-On Installation. Supports both 120/208V and 120/240V applications
Features
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- INTUITIVE – Color indicators in the handle show operational status at-a-glance
- COMFORTABLE – Rocker-style switches require less activation force than traditional circuit breakers *Designed for Leviton Load Centers only
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Pole | 2 |
| Short Circuit Current Rating | 10 kA |
| Dimensions | 3.9 in. H x 2.0 in. W x 3.1 in. D |
| Type | Standard |
| FCC | Yes |
| UL 489 | Yes |
| Country of Origin | China |
| Voltage | 120/208 and 120/240 VAC |
|---|---|
| Breaker Technology | Thermal Magnetic |
| Wiring | All Plug-on |
| Weight | 0.85 lbs. |
| RoHS | Yes |
| EMC Compatibility | Yes |
| Smart | No |
