Schneider Electric NSYCFP80 Lower cable guide crossrail, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800mm

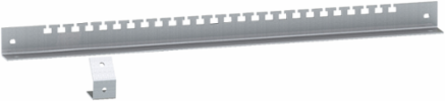

Lower cable guide crossrail, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800mm
  • MPN: NSYCFP80
  • PPN: SCH-NSYCFP80

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$162.88/ EA

Description

Spacial SF/SM lower cable guide cross rail. W is 800 mm. Multi-purpose accessory. Enables quick and simple attachment of any incoming or outgoing cables. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Galvanised Steel. 1 rail and fixing elements incl.

Specifications

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
fixing elements, 1 rail
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Adjustment
adjustable in depth every 25 mm
Energy Efficiency Optimized
False
Material
galvanised steel
Product Availability
Non-Stock - Not normally stocked in distribution facility
Quantity Per Set
set of 1
Returnability
No
Accessory Separate Part Category
cabling accessory
Offer Owner Code
190789
Width Nominal
nominal: 800 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Fixing Center750 mm
Mounting Locationon structure of enclosure
Product Or Component Typecable guide
RangePanelSeT
Sustainable PackagingNo
Warranty In Months18
Pn1

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes

General Attributes

Product Or Component Type
cable guide

ETIM

ETIM 8
EC000322
ETIM 9EC000322

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
France
