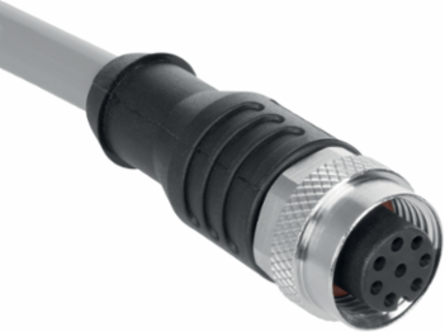

Schmersal 103011413 M12 Female Connector Cable 8-Pole 10 m Grey PVC IP65/IP67/IP69
Schmersal 103011413 M12 Female Connector Cable 8-Pole 10 m Grey PVC IP65/IP67/IP69
- MPN: 103011413
- PPN: SCM-103011413
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$153.14/ EA
Features
- 10 m
- Pre-wired cable
- 8-pole
Specifications
Electrical data
- Thermal test current
- 2 A
- Rated operating voltage
- 30 VDC
Rated operating voltage30 VAC
Operating current2,000 mA

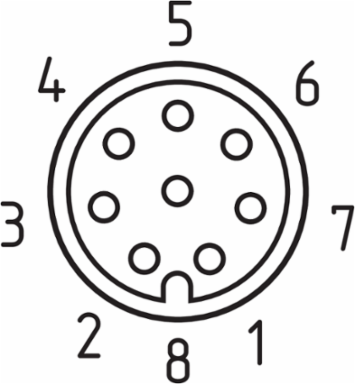

Pin assignment
- PIN 1
- White
- PIN 3
- green
- PIN 5
- Grey
- PIN 7
- Blue
PIN 2Brown
PIN 4yellow
PIN 6Pink
PIN 8red
Mechanical data - connector side A
- Connector typ
- Female connector, M12
- Connector coding
- A
- Material of the gland
- Metal, CuZn, nickel-plated
- Colour of the handle
- Black
Designstraight
Connector latchingScrew locking
Material of the handlePlastic, TPU
General data - Features
- Halogen free
- Yes (1)
- Number of poles
- 8
Cable drag chain suitableYes (1)
Number of cable wires8
General data
- Standards
- EN IEC 61076-2-101
Gross weight515 g
Ambient conditions
- Degree of protection
- IP65 | IP67 | IP69
- Ambient temperature (fixed)
- -25 ... +80 °C
Ambient temperature (Connector)-30 ... +90 °C
Ambient temperature (moved)+0 ... +80 °C
Mechanical data - Connection technique
- Length of cable
- 10 m
- Cable diameter
- 6.2 mm
- Bending radius (repeated)
- 10 x Ø-cable
- Material of the Cable mantle
- PVC
Wire cross-section0.25 mm
Bending radius (fixed)5 x Ø-cable
Colour of the Cable mantleGrey
Mechanical data
- Tightening torque, maximum
- 1 Nm
Downloads
