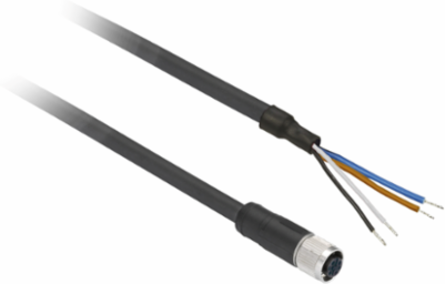

Telemecanique Sensors XZCPV1141L2 Pre wired connectors XZ, straight female, M12, 4 pins, cable PVC 2 m
Telemecanique Sensors XZCPV1141L2 Pre wired connectors XZ, straight female, M12, 4 pins, cable PVC 2 m
- MPN: XZCPV1141L2
- PPN: TES-XZCPV1141L2
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$34.88/ EA
Description
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 5 pins M12 straight female connector with a metal collar. It is designed in polyvinyl chloride for general use. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 3A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), and can be temporarily immersed in water (IP67). This cable has a length of 2m and a diameter of 4.6mm. It is made up of 4 wires, each section of which is 0.25 mm². Its color is black and its weight is 0.09kg. It is intended for general use like machines with low environmental and mechanical stresses (-25°C to +80°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP65 || IP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Collar Material
- metal
- Wire Insulation Material
- PVC
- Cable Length
- 2 m
- Net Weight
- 0.09 kg
- Minimum Insulating Resistance
- 1 GΩ
- Line Rated Current
- 3 A
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 4 pins
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Status Ledwithout
Cable Outer Diameter4.6 mm
Cable Connector Fixingscrew-on
Cable Composition4 x 0.25 mm²
Specifications
- Range Of Product
- Telemecanique Cabling components
- Series Name
- general purpose
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
