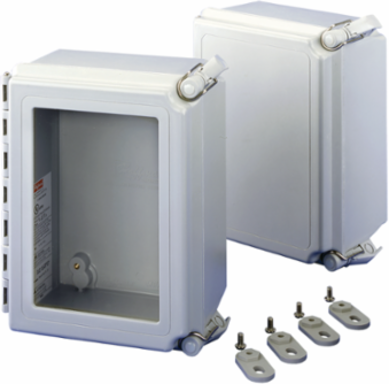

nVent Hoffman A12106CHQRFGW Continuous Hinge QR Window Cover Enclosure 12x10x6 Inch, Fiberglass, NEMA 4X
- MPN: A12106CHQRFGW
- UPC: 783510312800
- PPN: HOF-A12106CHQRFGW
- UNSPSC: 39121324
CAD
$424.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Continuous Hinge Fiberglass Enclosures have secure seal for durability in corrosive environments. This Continuous Hinge QR Window Cover Enclosure 4X, A12106CHQRFGW item measures 12x10x6inch with material Fiberglass color Light Gray.
Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- Type 4X Watertight, corrosion-resistant
- IP Rating
- IP66
- Width
- 254 mm
- Height
- 305 mm
- Mounting (G x H)
- 329 x 203 mm
- Thickness
- 4 mm
- Cover Style
- Window
- Color
- Light Gray (RAL 7035)
- BABA
- Yes, BABA Compliant
- Mounting Brackets
- Polyester with stainless steel attachment screws
- Bail Material
- Corrosion-resistant Type 316 stainless steel
- Seal Type
- Water-tight and dust-tight gasket
- Mounting Inserts
- Molded-in-place threaded brass inserts with plated steel screws
Protection RatingNEMA Type 12
Size12.00 x 10.00 x 6.00 in
Depth152 mm
Overall Dimensions318 x 267 mm
Weight5.4 lb
Latch TypeQuick Release, corrosion-resistant polyester
MaterialCompression-molded fiberglass with chemical- and temperature-resistance, halogen-free
FinishSmooth Matte
Cover ScrewsTwo captivated Type 316 stainless steel slotted
Hinge Pin MaterialType 316 stainless steel
Window MaterialScratch-resistant polycarbonate
Padlock ProvisionsIncluded
