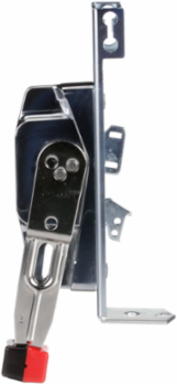

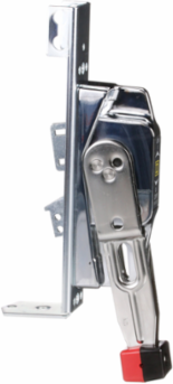

Square D 9422A2 Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 4X enclosure

Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 4X enclosure - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/019d1b43b633aa4ce9919eba53012760143e246b-medium.png

Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 4X enclosure

Square D 9422A2 Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 4X enclosure

MPN: 9422A2
UPC: 785901739807
PPN: SCH-9422A2

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$522.94/ EA

Qty:

Loading add to cart quantity...

Description

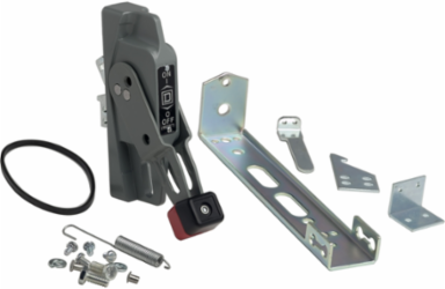

Handle mechanism kits are used with all disconnect switch and circuit breaker installations. The kits contain all parts necessary for mounting the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. Handle is suitable for right or left hand flange mounting. Handle mechanism has a 6 inch handle. Handle mechanism is for use in enclosures rated NEMA 4 and 4X (stainless steel). All external metal parts are either stainless steel or a chrome plated nonferrous die casting. Handle mechanism is UL Component Recognized.

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free: Yes

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Rohs Exemption InformationYes

Pvc FreeYes

Eu Rohs DirectiveCompliant

Reach Free Of SvhcYes

Specifications

Product Destination: disconnect switches (30...200 A)

Product Or Component TypeHandle Mechanism

Complementary

Product Destination: disconnect switches (30...200 A)

Length: 6 in

Product CompatibilityNEMA 4/4X enclosures

Specificity Of Operatorvariable depth

Contractual warranty

Warranty: 18 months
