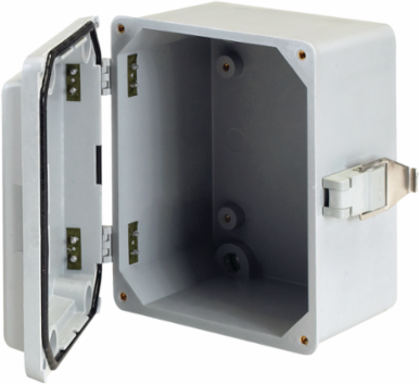

nVent Hoffman A14107JFGR Screw Cover Quick-Release Latch Type 4X, 13.50x10.00x7.20, Gray, Fiberglass
- MPN: A14107JFGR
- UPC: 783510411800
- PPN: HOF-A14107JFGR
- UNSPSC: 39121324
CAD
$542.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Screw/Hinge Cover QR latch Fiberglass Enclosures have a simple design and withstand harsh conditions. This Screw Cover Quick-Release Latch Type 4X, A14107JFGR item measures 13.50x10.00x7.20in with material of Fiberglass color Gray.
Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Fiberglass material is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Threaded internal bosses provided for mounting optional panels and terminal block kits
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
- Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
- A Type 316L stainless steel padlock hasp is furnished with each enclosure
- Sealing washers are furnished with enclosure
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 254
- Protection Rating
- NEMA Type 12
- Color
- Light Gray
- Thickness (T)
- 3
- Latch Type
- Screws
- Weight
- 7.4
- Size
- 13.50x10.00x7.19 in
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)356
Depth (D)178
FinishSmooth Matte
Color CodeRAL 7035
Cover StyleSolid
IP RatingIP66
MaterialFiberglass
Cubic Capacity971 cubic in
