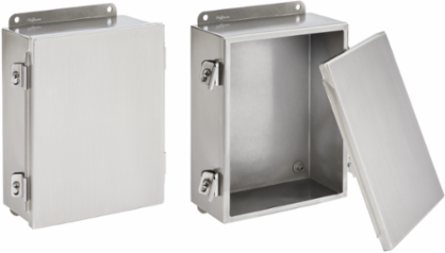

nVent Hoffman A1614NFSS Clamp Cover Junction Box 4X, 16x14x6 Inch, SS304, NEMA Type 12, IP66
- MPN: A1614NFSS
- UPC: 783510569709
- PPN: HOF-A1614NFSS
- UNSPSC: 39121303
CAD
$1636.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 4X, Clamp-Cover Terminal Boxes provide corrosive, outdoor protection of electrical connections. This Clamp Cover Junction Box Type 4X, A1614NFSS item measures 16x14x6 inches with a material of SS304.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Stainless steel screws and clamps
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door and body
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| IP Rating | IP66 |
| Width (W) | 356 mm |
| Depth (D) | 152 mm |
| Body Thickness | 1.98 mm |
| Weight | 18.9 kg |
| Finish | Brushed #4 |
| Cover Gauge | 16 gauge |
| Seams | Continuously welded and ground smooth |
| Bonding Provision | On door and body |
| Protection Rating | NEMA Type 12 |
|---|---|
| Size | 16.00 x 14.00 x 6.00 in |
| Height (H) | 406 mm |
| Overall Dimensions (L x W) | 445 x 391 mm |
| Door Thickness | 1.59 mm |
| Material | 304 Stainless Steel |
| Body Gauge | 14 gauge |
| Gasket Type | Seamless foam-in-place |
| Screws and Clamps | Stainless steel |
| Weldnuts | Provided for mounting optional panels and terminal block kits ( 6.00 x 4.00 in) |
