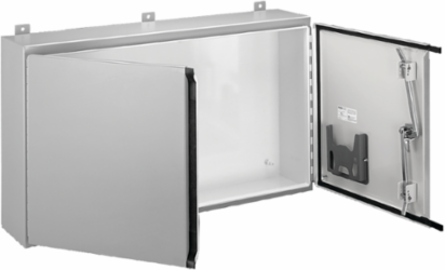

nVent Hoffman A244208WFLP Continuous Hinge 2-Door Steel Enclosure 24 x 42 x 8 Inch, NEMA Type 12
- MPN: A244208WFLP
- UPC: 783510271206
- PPN: HOF-A244208WFLP
- UNSPSC: 39121324
CAD
$1677.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Two door Type 12 enclosures offer full-width access for machine control applications. This Continuous Hinge 2-Door with Handle Type 12, A244208WFLP item measures 24.00x42.00x8.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External welded-on mounting brackets for easy installation
- External formed body flange channels away liquids
- Gasketed overlapping doors eliminate need for center post
- Removable door with continuous hinge
- Oil-tight key-locking handle with 3-point latch
- Removable heavy gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs for mounting optional panels
- Bonding provision on both doors
- Body is white inside with ANSI 61 grey finish outside
- Door is ANSI 61 grey inside and outside
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,067
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Interior Color
- White
- Stiffener Body
- 0
- Weight
- 82
- Size
- 24.00x42.00x8.00 in
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)610
Depth (D)203
FinishPowder Coated
Exterior Color CodeANSI 61
Thickness (T)1.9
IP RatingIP55
MaterialSteel
ColorGray
