nVent Hoffman A424212WFLP Continuous Hinge 2-Door Enclosure 42.00x42.00x12 Inch, Steel, NEMA 12
- MPN: A424212WFLP
- UPC: 783510276300
- PPN: HOF-A424212WFLP
- UNSPSC: 39121324
CAD
$2655.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

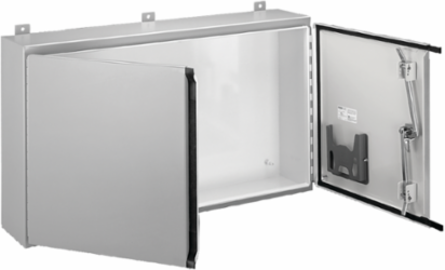

Two door Type 12 enclosures offer full-width access for machine control applications. This Continuous Hinge 2-Door with Handle Type 12, A424212WFLP item measures 42.00x42.00x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External welded-on mounting brackets for easy installation
- External formed body flange channels away liquids
- Gasketed overlapping doors eliminate need for center post
- Removable door with continuous hinge
- Oil-tight key-locking handle with 3-point latch
- Removable heavy gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs for mounting optional panels
- Bonding provision on both doors
- Body is white inside with ANSI 61 grey finish outside
- Door is ANSI 61 grey inside and outside
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,067 |
| Protection Rating | NEMA Type 12 |
| Exterior Color | Gray |
| Interior Color | White |
| Stiffener Body | 3 |
| Weight | 144 |
| Size | 42.00x42.00x12.00 in |
| Height (H) | 1,067 |
|---|---|
| Depth (D) | 305 |
| Finish | Powder Coated |
| Exterior Color Code | ANSI 61 |
| Thickness (T) | 1.9 |
| IP Rating | IP55 |
| Material | Steel |
| NEMA Rating | 12 Indoor, dust-resistant |
