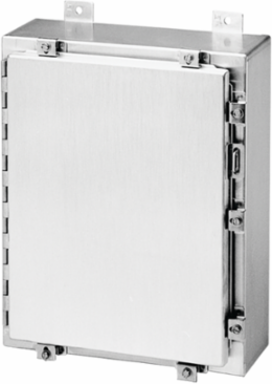

nVent Hoffman A24H2408ALLP Continuous Hinge Enclosure, 24x24x8 Inch, Aluminum, NEMA 4X
- MPN: A24H2408ALLP
- UPC: 783510273002
- PPN: HOF-A24H2408ALLP
- UNSPSC: 39121324
CAD
$2457.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Clamped, continuous hinge enclosures are made of aluminum and great for outdoor applications. This Continuous Hinge Enclosure with Clamps LP Type 4X, A24H2408ALLP item measures 24x24x8 inch with material of Aluminum finish Brushed.
Features
- Lightweight, Type 4x hinged enclosure.
- Seams continuously welded and ground smooth
- Rolled lip around three sides of door and all sides of enclosure opening
- Stainless steel door clamp assemblies
- Door is easily removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Hasp and staple for padlocking
- Tapped pads provided for mounting optional panels; panel screws are plated
- Oil-resistant gasket
- Enclosures are unpainted; door front has a smooth, brushed finish
Documentation & Downloads
Specifications
Additional
| Size | 24.00 x 24.00 x 8.00 in |
|---|---|
| Width (W) | 610 mm |
| Thickness (T) | 2 mm |
| Material | Aluminum, Type 5052-H32 |
| NEMA Rating | Type 4X Watertight, corrosion-resistant |
| IP Rating | IP66 |
| Panel Mounting Stud Quantity | 4 |
| Door Clamp Material | Stainless steel |
| Door Hinge | Continuous stainless steel hinge pin |
| Panel Screws | Plated |
| Door Removal | Easily removed by pulling hinge pin |
| Rolled Lip | Around three sides of door and all sides of enclosure opening |
| Mounting | Tapped pads for optional panels mounting |
| Height (H) | 610 mm |
|---|---|
| Depth (D) | 203 mm |
| Weight | 23.5 lb |
| Finish | Brushed |
| Protection Rating | NEMA Type 12 |
| Clamp Quantity | 5 |
| Data Pocket Size | 152 x 152 mm |
| Gasket Material | Oil-resistant |
| Data Pocket Material | High-impact thermoplastic |
| Seams | Continuously welded and ground smooth |
| Enclosure Finish | Unpainted |
| Padlock Provision | Hasp and staple for padlocking |
