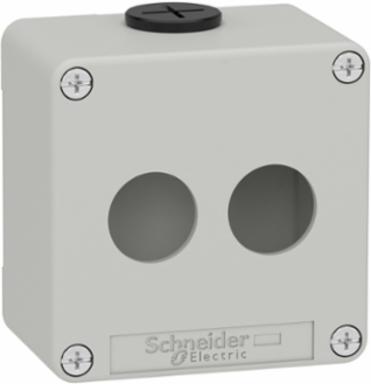

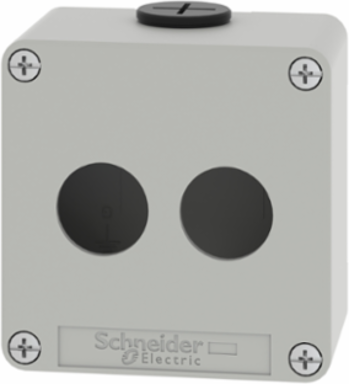

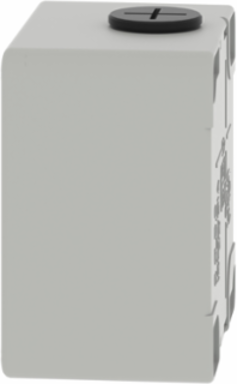

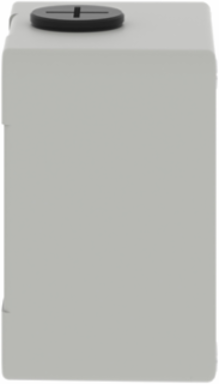

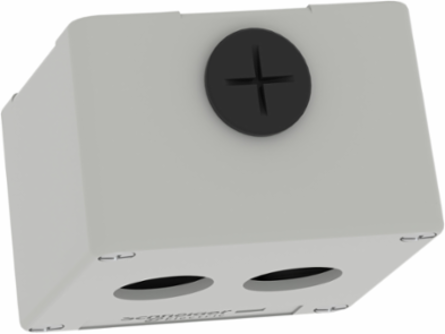

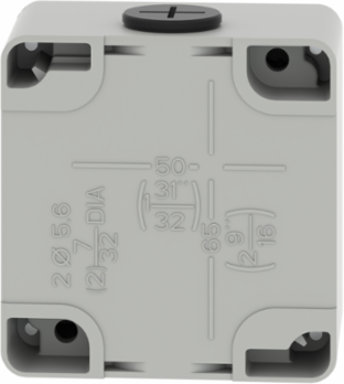

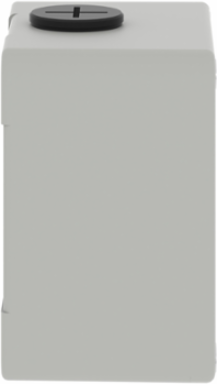

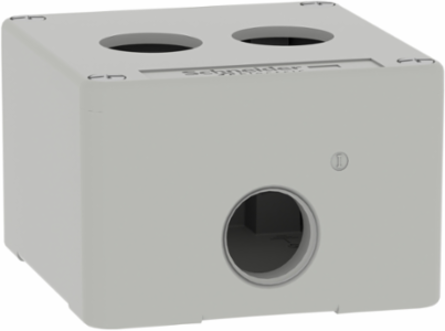

Schneider Electric XAPD1202 Harmony XAP Die-Cast Control Station, 80mm x 80mm, 2 Cut-Outs 22mm, Zinc Alloy
- MPN: XAPD1202
- PPN: SCH-XAPD1202
CAD
$95.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony XAP Die-Cast Control Station, 80mm x 80mm, 2 Cut-Outs 22mm, Zinc Alloy
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Morocco
Physical Attributes
- Cad Overall Depth
- 51.5 mm
- Cad Overall Width
- 80 mm
- Usable Depth
- 49 mm
- Color Of Cover
- grey RAL 7035)
Cad Overall Height80 mm
Product Front Plate Size80 x 80 mm
Color Of Base Of Enclosuregrey RAL 7035)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, cULus, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0479079577
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.8485044092
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Type
- metal
- Electrical Shock Protection Class
- class I conforming to IEC 61140
- Number Of Horizontal Rows
- 1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- die-cast empty control station
- Range Of Product
- Harmony XAP
- Returnability
- Yes
- Software Version
- EIME v5.9.1
- Thread Type
- M20 x 1.5
- Color Of Base Of Enclosure
- grey RAL 7035)
- Pep Code
- ENVPEP2309042EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Number Of Cut-out
- 2 cut-outs
- Package Weight(Lbs)
- 533.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0687692205, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0016170487, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2114
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cable Entry2 x cable gland ISO
Device Short NameXAPD
Materialdie cast zinc
Number Of Vertical Rows2
Product Destinationfor Ø 22 mm control and signalling units
Protective TreatmentTC
Resistance To Chemical Agentsspecial treatment can be obtained on request
Sale Per Indivisible Quantity1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Color Of Covergrey RAL 7035)
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Cut-out DimensionsØ 22 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP65 EN/IEC 60529 and EN/IEC 60947-5-1, IP66 EN/IEC 60529 and EN/IEC 60947-5-1, IP69 EN/IEC 60529 and EN/IEC 60947-5-1
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2309042EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309042EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint3.966798636
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- die-cast empty control station
Range Of ProductHarmony XAP
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
