Weidmuller 2552090000 PUSH IN Terminal Block, 35 mm2, 1000 V, 125 A, Blue
- MPN: 2552090000
- PPN: WDM-2552090000
CAD
$10.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

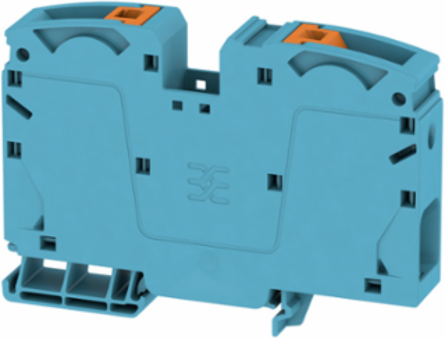

PUSH IN, 35 mm², 1000 V, 125 A, blue
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
UL File Number SearchE60693
Dimensions And Weights
- Width
- 16 mm
- Height
- 101.5 mm
- Depth
- 71.5 mm
- Net weight
- 79.726 g
Width (inches)0.63 inch
Height (inches)3.996 inch
Depth (inches)2.815 inch
Additional Technical Data
- Snap-on
- Yes
- Type of mounting
- TS 35
Type of fixingTS 35
Material Data
- Material
- Wemid
- Colour of operational elements
- orange
Colourblue
UL 94 flammability ratingV-0
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- Rail
- TS 35
Temperatures
- Operating temperature range, max.
- 130 °C
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Operating temperature range, min.-50 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 35 mm²
- Rated AC voltage
- 1,000 V
- Rated current
- 125 A
- Volume resistance according to IEC 60947-7-x
- 0.26 mΩ
- Rated impulse withstand voltage
- 8 kV
- Surge voltage category
- III
Rated voltage1,000 V
Rated DC voltage1,500 V
Current at maximum wires125 A
Power loss in accordance with IEC 60947-7-x4 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 35 mm²
- Number of connections
- 2
- Twin wire-end ferrules, max.
- 10 mm²
- Type of connection
- PUSH IN
- Wire connection cross section AWG, min.
- AWG 12
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 35 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 10 mm²
- Wire connection cross-section, solid core, min.
- 2.5 mm²
Clamping range, min.2.5 mm²
Stripping length25 mm
Twin wire-end ferrules, min.2.5 mm²
Wire connection cross section AWG, max.AWG 2
Wire connection cross section, finely stranded, max.35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.2.5 mm²
Wire connection cross-section, solid core, max.16 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 12 AWG
- Conductor size Field wiring min. (cURus)
- 12 AWG
- Current size C (cURus)
- 113 A
- Voltage size B (cURus)
- 1000 V
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)2 AWG
Conductor size Field wiring max. (cURus)2 AWG
Current size B (cURus)113 A
Current size D (cURus)5 A
Voltage size C (cURus)1000 V
