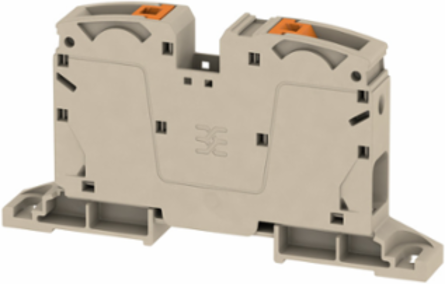

Weidmuller 2551550000 PUSH IN Terminal Block 35 mm2, 1000 V, 125 A, Dark Beige
- MPN: 2551550000
- PPN: WDM-2551550000
CAD
$8.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PUSH IN, 35 mm², 1000 V, 125 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|
| UL File Number Search | E60693 |
|---|
Dimensions And Weights
| Width | 16 mm |
|---|---|
| Height | 135 mm |
| Depth | 71.5 mm |
| Net weight | 85.232 g |
| Width (inches) | 0.63 inch |
|---|---|
| Height (inches) | 5.315 inch |
| Depth (inches) | 2.815 inch |
Additional Technical Data
| Snap-on | No |
|---|
| Type of mounting | Direct mounting |
|---|
Material Data
| Material | Wemid |
|---|---|
| Colour of operational elements | orange |
| Colour | dark beige |
|---|---|
| UL 94 flammability rating | V-0 |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
Temperatures
| Operating temperature range, max. | 130 °C |
|---|---|
| Storage temperature, max. | 40 °C |
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Operating temperature range, min. | -50 °C |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 35 mm² |
|---|---|
| Rated AC voltage | 1,000 V |
| Rated current | 125 A |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Surge voltage category | III |
| Rated voltage | 1,000 V |
|---|---|
| Rated DC voltage | 1,500 V |
| Current at maximum wires | 125 A |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Clamping range, max. | 35 mm² |
|---|---|
| Number of connections | 2 |
| Twin wire-end ferrules, max. | 10 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 35 mm² |
| Wire connection cross-section, finely stranded, min. | 10 mm² |
| Wire connection cross-section, solid core, min. | 2.5 mm² |
| Clamping range, min. | 2.5 mm² |
|---|---|
| Stripping length | 25 mm |
| Twin wire-end ferrules, min. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 12 AWG |
| Current size C (cURus) | 113 A |
| Voltage size B (cURus) | 1000 V |
| Voltage size D (cURus) | 600 V |
| Conductor size Factory wiring max. (cURus) | 2 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 2 AWG |
| Current size B (cURus) | 113 A |
| Current size D (cURus) | 5 A |
| Voltage size C (cURus) | 1000 V |
