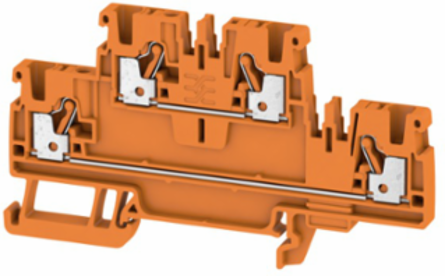

Weidmuller 2552480000 A2T 4 OR Double-tier Terminal, 4 mm², 800 V, 32 A, Orange, Push-in Technology
Weidmuller 2552480000 A2T 4 OR Double-tier Terminal, 4 mm², 800 V, 32 A, Orange, Push-in Technology
- MPN: 2552480000
- PPN: WDM-2552480000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.68/ EA
Description
Double-tier terminal, PUSH IN, 4 mm², 800 V, 32 A, orange
Specifications
Approvals
- Approvals
- CE, cURus
UL File Number SearchE60693
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 100 mm
- Depth
- 53.5 mm
- Depth including DIN rail
- 54.5 mm
Width (inches)0.24 inch
Height (inches)3.937 inch
Depth (inches)2.106 inch
Net weight20.416 g
Additional Technical Data
- Installation advice
- Rail
- Snap-on
- No
- Type of mounting
- TS 35
Open sidesright
Type of fixingSnap-on
With snap-in pegsNo
Material Data
- Material
- Wemid
- Colour of operational elements
- orange
Colourorange
UL 94 flammability ratingV-0
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- End cover plate required
- Yes
- Number of levels
- 2
- Number of potentials per tier
- 1
- PE connection
- No
- N-function
- No
- PEN function
- No
Number of potentials2
Number of clamping points per level2
Levels cross-connected internallyNo
RailTS 35
PE functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 2.04 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires32 A
Volume resistance according to IEC 60947-7-x1 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A4
- Stripping length
- 12 mm
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection cross-section, stranded, max.4 mm²
Connection directiontop
Number of connections4
Twin wire-end ferrules, max.1.5 mm²
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 30 A
- Voltage size B (cURus)
- 600 V
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)10 AWG
Conductor size Field wiring max. (cURus)10 AWG
Current size B (cURus)30 A
Current size D (cURus)5 A
Voltage size C (cURus)600 V
