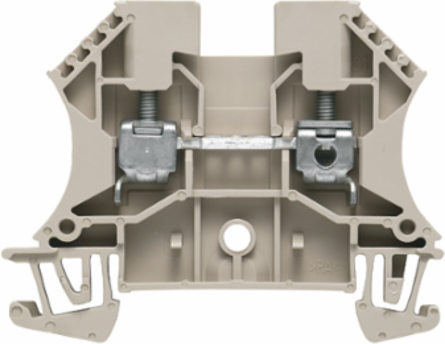

Weidmuller 1020100000 WDU 4
- MPN: 1020100000
- PPN: WDM-1020100000
CAD
$1.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 800 V |
|---|---|
| Rated Cross-Section | 4 mm2 |
| Rated impulse withstand voltage | 8 kV |
| Storage Temperature Range | 10 C to 40 C |
| Mounting Type | Snap-on |
| Number of Connections | 2 |
| Tightening Torque | 0.5-1 Nm |
| Width | 6.1 mm (0.24 inch) |
| Depth | 46.5 mm (1.831 inch) |
| Material | Wemid |
| Pollution Severity | 3 |
| RoHS Compliance | Compliant |
| CSA Certified | Yes |
| ATEX Certified | Yes |
| Rated Current | 32 A |
|---|---|
| Power Loss | 1.02 W |
| Operating Temperature Range | -60 C to 130 C |
| Connection Type | Screw connection |
| Mounting Rail | TS 35 |
| Blade Size | 0.6 x 3.5 mm |
| Clamping Range | 0.13-6 mm2 |
| Height | 60 mm (2.362 inch) |
| Weight | 9.57 g |
| Color | Dark beige |
| Flammability Rating | UL 94 V-0 |
| UL Listed | Yes |
| IECEx Certified | Yes |
