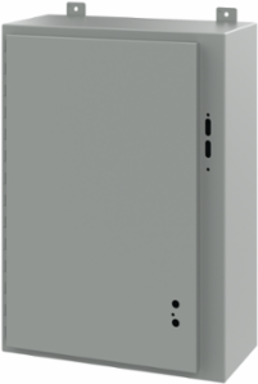

nVent Hoffman A30SA2210LP Disconnect Enclosure Type 12, 30 Inch x 21-3/8 Inch x 10 Inch, Gray Steel, NEMA 12
- MPN: A30SA2210LP
- UPC: 783510329402
- PPN: HOF-A30SA2210LP
- UNSPSC: 39121324
CAD
$1330.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure without Handle Type 12, A30SA2210LP item measures 30.00x21.38x10.00 inches with a material of Steel colored Gray.
Features
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded-on mounting brackets
- External formed body flange channels away liquids
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
- Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 543
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Handle Included
- No
- IP Rating
- IP65
- Weight
- 35
- Size
- 30.00x21.38x10.00 in
Height (H)762
Depth (D)254
FinishPowder Coated
Interior ColorWhite
Thickness (T)1.9
Data Pocket Size (D x E)152 x 152
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
