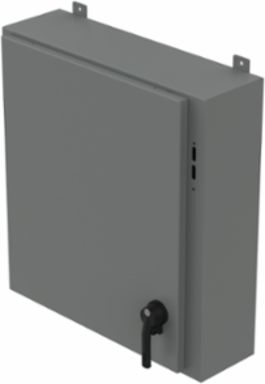

nVent Hoffman A30X1E2810 Low-Profile 1-Door Disconnect Enclosure, 30 x 28.25 x 10 Inch, NEMA Type 12, Steel
- MPN: A30X1E2810
- UPC: 783510127077
- PPN: HOF-A30X1E2810
- UNSPSC: 39121324
CAD
$1442.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 1-Door Disconnect Type 12, A30X1E2810 item measures 30.00x28.25x10.00 inches with material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 718 |
| Protection Rating | NEMA Type 12 |
| Color Code | ANSI 61 |
| Panel Quantity | 1 |
| IP Rating | IP55 |
| Weight | 132 |
| Size | 30.00x28.25x10.00 in |
| Height (H) | 762 |
|---|---|
| Depth (D) | 254 |
| Finish | Powder Coated |
| Thickness (T) | 1.88 |
| Lifting Eye Quantity | 0 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Material | Steel |
| Color | Gray |
