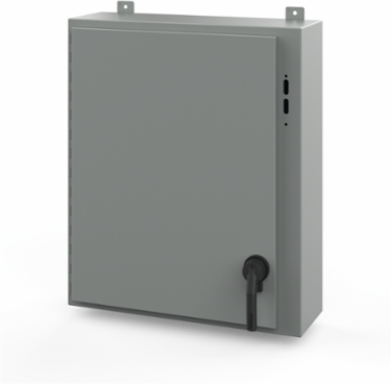

nVent Hoffman A30SA2608LPPL Disconnect Enclosure, 30.00x25.38x8.00 Inch, Gray Steel, NEMA Type 12

MPN: A30SA2608LPPL
UPC: 783510403690
PPN: HOF-A30SA2608LPPL
UNSPSC: 39121324

$1398.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A30SA2608LPPL item measures 30.00x25.38x8.00 inches with a material of Steel colored Gray.

Features

14 gauge steel
Seams continuously welded and ground smooth
Bonding provision on door
External welded-on mounting brackets
External formed body flange channels away liquids
Removable door with continuous hinge
Data pocket is high impact thermoplastic
Oil-resistant gasket
Collar studs for mounting optional panels
Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	645
Protection Rating	NEMA Type 12
Exterior Color	Gray
Exterior Color Code	ANSI 61
Handle Included	Yes
IP Rating	IP65
Material	Steel
NEMA Rating	12 Indoor, dust-resistant
