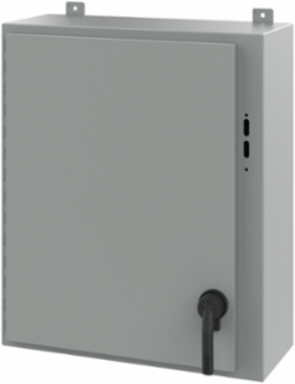

nVent Hoffman A30SA2610LPPL Disconnect Enclosure Type 12, 30.00x25.38x10.00 Inch, Gray Steel
- MPN: A30SA2610LPPL
- UPC: 783510403799
- PPN: HOF-A30SA2610LPPL
- UNSPSC: 39121324
CAD
$1468.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A30SA2610LPPL item measures 30.00x25.38x10.00 inches with a material of Steel colored Gray.
Features
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded-on mounting brackets
- External formed body flange channels away liquids
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
- Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Size
- 30.00 x 25.38 x 10.00 in
- Width (W)
- 645 mm
- Thickness (T)
- 1.9 mm
- Material
- 14 gauge steel
- Exterior Color
- Gray (ANSI 61)
- Handle Included
- Yes
- Gasket
- Oil-resistant
- Body Feature
- External formed flange channels away liquids
- Data Pocket Material
- High impact thermoplastic
IP RatingIP65
Height (H)762 mm
Depth (D)254 mm
Weight75 lb
FinishPowder Coated; White inside, ANSI 61 gray outside
Interior ColorWhite
DoorRemovable with continuous hinge
MountingExternal welded-on brackets, collar studs for optional panels
Data Pocket Size305 x 305 mm
