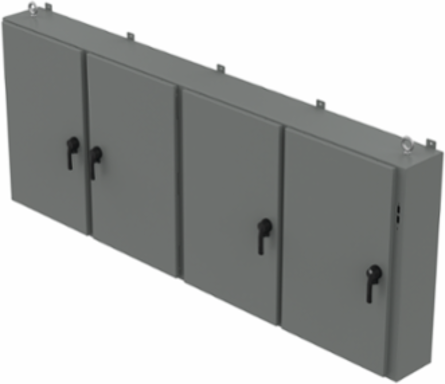

nVent Hoffman A60X4E15710 Low-Profile Disconnect Enclosure 60 Inch x 156-1/2 Inch x 10 Inch, Steel, NEMA 12
- MPN: A60X4E15710
- UPC: 783510127459
- PPN: HOF-A60X4E15710
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 4-Door Disconnect Type 12, A60X4E15710 item measures 60.00x156.50x10.00 inches with material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 3,975
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Body Stiffener
- 3
- Lifting Eye Quantity
- 4
- NEMA Rating
- 12 Indoor, dust-resistant
- Material
- Steel
- Color
- Gray
Height (H)1,524
Depth (D)254
FinishPowder Coated
Thickness (T)3.07405405405405
Panel Quantity2
IP RatingIP55
Weight1,139
Size60.00x156.50x10.00 in
