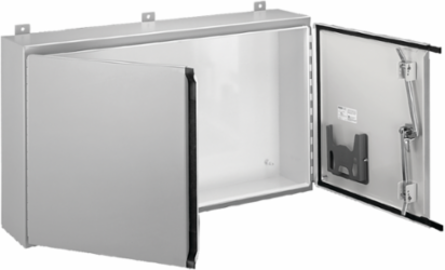

nVent Hoffman A364812WFLP Continuous Hinge Steel 2-Door Enclosure 36 Inch x 48 Inch x 12 Inch, Gray
- MPN: A364812WFLP
- UPC: 783510271701
- PPN: HOF-A364812WFLP
- UNSPSC: 39121324
CAD
$2558.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Two door Type 12 enclosures offer full-width access for machine control applications. This Continuous Hinge 2-Door with Handle Type 12, A364812WFLP item measures 36.00x48.00x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External welded-on mounting brackets for easy installation
- External formed body flange channels away liquids
- Gasketed overlapping doors eliminate need for center post
- Removable door with continuous hinge
- Oil-tight key-locking handle with 3-point latch
- Removable heavy gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs for mounting optional panels
- Bonding provision on both doors
- Body is white inside with ANSI 61 grey finish outside
- Door is ANSI 61 grey inside and outside
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,219
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Interior Color
- White
- Stiffener Body
- 0
- Weight
- 146
- Size
- 36.00x48.00x12.00 in
Height (H)914
Depth (D)305
FinishPowder Coated
Exterior Color CodeANSI 61
Thickness (T)1.52
IP RatingIP55
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
