nVent Hoffman A36H3612GQRLP Hinge Cover Enclosure 4X, 36.25x36.25x12 Inch, Gray, Fiberglass, NEMA 4X
- MPN: A36H3612GQRLP
- UPC: 783510295806
- PPN: HOF-A36H3612GQRLP
- UNSPSC: 39121324
CAD
$4041.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

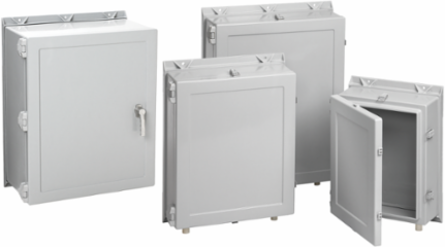

Fiberglass Enclosure with 3-Point Latch and PowerGlide Handle or Quick-Release padlockable latches. This Hinge Cover Enclosure Quick-Release Type 4X, A36H3612GQRLP item measures 36.25x36.25x12.00 inch material of Fiberglass color Gray
Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
- Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
- Seams are sealed; no holes or knockouts
- Gasket assures water-tight and dust-tight seal
- Fiberglass material is easily punched, drilled, filed or sawed
- Data pocket is high-impact thermoplastic
- Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Documentation & Downloads
Specifications
Additional
- Size
- 36.25 x 36.25 x 12 in
- IP Rating
- IP66
- Protection Rating
- NEMA Type 12
- Color
- Gray
- Width (W)
- 921 mm
- Depth (D)
- 305 mm
- Weight
- 68
- Latch Type
- 3-point latch, Quick-release latch
- Gasket
- Water-tight and dust-tight seal
- Panel Mounting
- Copper-flashed steel collar studs
- Temperature Resistance
- Excellent temperature and chemical resistance
Latch Quantity7
NEMA Rating4X Watertight, corrosion-resistant
MaterialFiberglass, Polyester (latches), High-impact thermoplastic (data pocket), Copper-flashed steel (collar studs), Type 316L stainless steel (handle, hasp)
FinishSmooth Matte
Height (H)921 mm
Thickness (T)3.8
BABAYes, BABA Compliant
Handle MaterialType 316L stainless steel
SeamsSealed, no holes or knockouts
Enclosure FeaturesEasily punched, drilled, filed, or sawed
