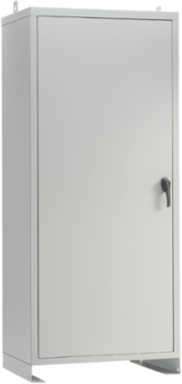

Nvent Hoffman A48N2512FSLP Free-Stand Type 1 Enclosure, 48 x 25-1/2 x 12 Inch, Gray Steel, NEMA 1
Nvent Hoffman A48N2512FSLP Free-Stand Type 1 Enclosure, 48 x 25-1/2 x 12 Inch, Gray Steel, NEMA 1
- MPN: A48N2512FSLP
- UPC: 783510137250
- PPN: HOF-A48N2512FSLP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2501.69/ EA
Description
Robust NEMA Type 1 enclosure for general industrial use to protect equipment and employees. This Free-Stand Type 1, A48N2512FSLP item measures 48.00x25.50x12.00 inches with a material of Steel colored Gray.
Features
- Enclosure back is 12 gauge for increased stiffness
- 4-in. high 10 gauge steel integral lifting base
- Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Easily reversible doors on single-door models
- Overlapping doors with no center post on two-door models
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
- Removable back covers
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 648
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- Panel Size (D)
- 944
- IP Rating
- IP30
- Weight
- 173
- Size
- 48.00x25.50x12.00 in
Height (H)1,219
Depth (D)305
FinishPowder Coated
Thickness (T)1.9
Panel Size (E)546
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
