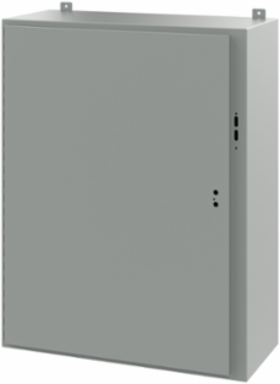

nVent Hoffman A48SA3816LP Disconnect Enclosure Type 12, 48 x 37 x 16 Inch, Steel, Gray, NEMA 12
- MPN: A48SA3816LP
- UPC: 783510330903
- PPN: HOF-A48SA3816LP
- UNSPSC: 39121324
CAD
$2655.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure without Handle Type 12, A48SA3816LP item measures 48.00x37.38x16.00 inches with a material of Steel colored Gray.
Features
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded-on mounting brackets
- External formed body flange channels away liquids
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
- Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 949
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Handle Included
- No
- IP Rating
- IP65
- Material
- Steel
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,219
Depth (D)406
FinishPowder Coated
Interior ColorWhite
Thickness (T)1.9
Data Pocket Size (D x E)305 x 305
Weight64
Size48.00x37.38x16.00 in
