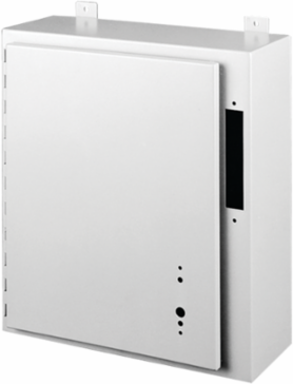

nVent Hoffman A60AB3816LP Cutout Disconnect Enclosure Type 12, 60 Inch x 37 Inch x 16 Inch, Gray, Steel
- MPN: A60AB3816LP
- UPC: 783510327903
- PPN: HOF-A60AB3816LP
- UNSPSC: 39121324
CAD
$2979.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide extra level of visual ON/OFF indication, Allen-Bradley® 1494 Cutouts. This Allen-Bradley 1494 Cutout Disconnect Enclosure Type 12, A60AB3816LP item measures 60x37x16 inch with material of Steel colored Gray.
Features
- Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
- Type 12 rated door gasket
- Seams continuously welded and ground smooth
- Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
- Collar studs provided for mounting optional panels
- Removable door with continuous hinge
- External mounting brackets
- Data pocket is high impact thermoplastic
- External-formed flange around all sides of enclosure opening
- Guide bracket(s) and door catch welded to door
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 965
- Finish
- Powder Coated
- Interior Color
- White
- Thickness (T)
- 1.9
- IP Rating
- IP65
- Weight
- 180
- Size
- 60.00x37.38x16.00 in
Height (H)1,524
Depth (D)406
Exterior ColorGray
Exterior Color CodeANSI 61
Data Pocket Size (D x E)305 x 305
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
