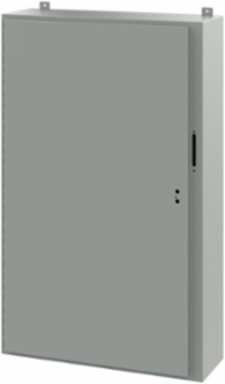

nVent Hoffman A60SA3812A24LP Disconnect Enclosure no Handle Type 12, 60.00x37.38x12.00, Gray, Steel
nVent Hoffman A60SA3812A24LP Disconnect Enclosure no Handle Type 12, 60.00x37.38x12.00, Gray, Steel
- MPN: A60SA3812A24LP
- UPC: 783510336707
- PPN: HOF-A60SA3812A24LP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2905.54/ EA
Description
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure no Handle AB1494V Type 12, A60SA3812A24LP item measures 60.00x37.38x12.00in. with material Steel color Gray.
Features
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded-on mounting brackets
- External formed body flange channels away liquids
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
- Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 949
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Handle Included
- No
- IP Rating
- IP65
- Weight
- 113
- Size
- 60.00x37.38x12.00 in
Height (H)1,524
Depth (D)305
FinishPowder Coated
Interior ColorWhite
Thickness (T)1.9
Data Pocket Size (D x E)305 x 305
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
