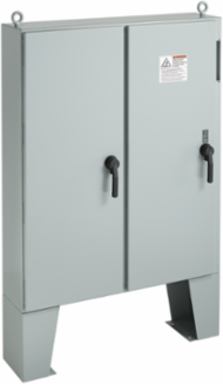

Nvent Hoffman A60X4924LPFTC Heavy-Duty Floorstand Disconnect Enclosure, 60.12 x 49.75 x 24.12 Inch, Steel, NEMA 12
Nvent Hoffman A60X4924LPFTC Heavy-Duty Floorstand Disconnect Enclosure, 60.12 x 49.75 x 24.12 Inch, Steel, NEMA 12
- MPN: A60X4924LPFTC
- UPC: 783510913106
- PPN: HOF-A60X4924LPFTC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty two door disconnect on floor stands designed for indoor industrial use. This Floorstand Disconnect 2Dr Wht Inside Type 12, A60X4924LPFTC item measures 60.12x49.75x24.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by master door prevents slave door from being opened first; doors can be closed in any order
- Includes door hardware
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,264
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- NEMA Rating
- 12 Indoor, dust-resistant
- Weight
- 540
- Size
- 60.12x49.75x24.12 in
Height (H)1,527
Depth (D)613
FinishPowder Coated
Interior ColorWhite
Thickness (T)3.04
IP RatingIP55
MaterialSteel
