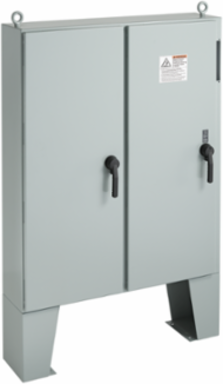

nVent Hoffman A60X6112LPFTCG Floorstand Disconnect Enclosure 60.12x61.75x12.12 Inch, Gray Steel, NEMA Type 12
- MPN: A60X6112LPFTCG
- UPC: 783510256586
- PPN: HOF-A60X6112LPFTCG
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty two door disconnect on floor stands designed for indoor industrial use. This Floorstand Disconnect 2Dr Gray Inside Type 12, A60X6112LPFTCG item measures 60.12x61.75x12.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by primary door prevents secondary door from being opened first; doors can be closed in any order
- Includes door hardware
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- Size
- 60.12 x 61.75 x 12.12 in
- Color
- Gray
- Exterior Color
- Gray, ANSI 61
- IP Rating
- IP55
- Doors
- Two-door, heavy-duty 3-point latching mechanism with padlocking handle
- Hinges
- Concealed, easy-to-remove
- Body Stiffeners
- In larger enclosures for extra rigidity
- Floor Stands
- 15 in, bolted-on to enclosure
- Data Pocket Material
- High impact thermoplastic
- Mechanical Interlock
- Operated by primary door prevents secondary door opening first; doors close in any order
- Master Door Orientation
- Right-hand on X enclosures, left-hand on CPX enclosures
- Height (H)
- 1,527 mm
- Thickness (T)
- 3.04
MaterialSteel
FinishPowder Coated, ANSI 61 gray polyester powder paint finish
Interior ColorGray
Weight597
Gauge Thickness11 gauge (.121 inch)
Door GasketOil-resistant
CenterpostsRemovable for easy panel installation
Body FlangeTrough excludes liquids and contaminants
Mounting ProvisionsLights and optional panels with collar studs
Lifting EyesHeavy-duty anchors into reinforced top
Panel SupportsIncluded
Width (W)1,568 mm
Depth (D)308 mm
Stiffener Position (S)533 mm
