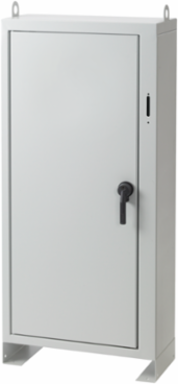

Nvent Hoffman A60XN2724FSLP Free-Stand Disconnect Enclosure Type 1, 60 Inch x 27 Inch x 24 Inch, Gray Steel
Nvent Hoffman A60XN2724FSLP Free-Stand Disconnect Enclosure Type 1, 60 Inch x 27 Inch x 24 Inch, Gray Steel
- MPN: A60XN2724FSLP
- UPC: 783510138912
- PPN: HOF-A60XN2724FSLP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2936.77/ EA
Description
Free-Stand Type 1 Disconnect Enclosure for general industrial use. This Free-Stand Disconnect Enclosure Type 1, A60XN2724FSLP item measures 60.00x27.00x24.00 inches with a material of Steel colored Gray.
Features
- 4-in. high 10 gauge steel integral lifting base
- Modified preferred disconnect cutout
- Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Screwdriver defeater in handle on master door
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 686
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- IP Rating
- IP30
- Weight
- 237
- Size
- 60.00x27.00x24.00 in
Height (H)1,524
Depth (D)610
FinishPowder Coated
Thickness (T)1.9
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
