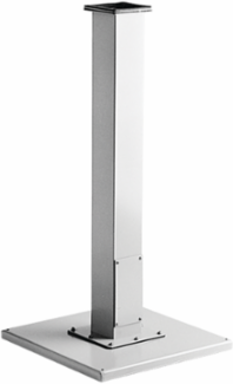

nVent Hoffman A66CCOL Pedestal System Straight Column, 35.00x6.00x6.00, Gray, Mild Steel
- MPN: A66CCOL
- UPC: 783510573409
- PPN: HOF-A66CCOL
- UNSPSC: 39121321
CAD
$866.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
A pedestal system with column and base options to mount enclosures and consolets for flexibility. This Pedestal System Straight Column, A66CCOL item measures 35.00x6.00x6.00 inches with a material of Steel colored Gray.
Features
- Columns can be mounted on either base, through the vertical column or directly to the enclosure
- A cutout must be made in the enclosure if the wires are to come through the column
- Columns have flanges at each end and a gasketed access plate
- Screws, oil-resistant gaskets and box connector fitting are furnished with the column for joining an enclosure to the top
- Bases have leveling screws and holes for bolting to the floor
Documentation & Downloads
Specifications
Additional
| Size | 35.00 6.00 6.00 in |
|---|---|
| Thickness (T) | 1.9 |
| Depth (D) | 152 mm |
| Weight | 22 |
| Color | Gray |
| BABA | Contact Manufacturer |
| Material | Steel, Mild Steel |
|---|---|
| Height (H) | 889 mm |
| Width (W) | 152 mm |
| Finish | Powder Coated |
| Color Code | ANSI 61 |
