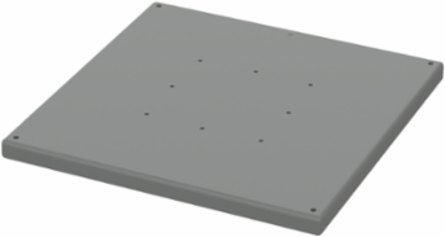

nVent Hoffman A18SBASE Pedestal System Base with Leveling Screws, 18.00x18.00, Gray, Mild Steel
- MPN: A18SBASE
- UPC: 783510573003
- PPN: HOF-A18SBASE
- UNSPSC: 39121321
CAD
$359.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
A pedestal system with column and base options to mount enclosures and consolets for flexibility. This Pedestal System Base, A18SBASE item measures 18.00x18.00 inches with a material of Steel colored Gray.
Features
- Columns can be mounted on either base, through the vertical column or directly to the enclosure
- A cutout must be made in the enclosure if the wires are to come through the column
- Columns have flanges at each end and a gasketed access plate
- Screws, oil-resistant gaskets and box connector fitting are furnished with the column for joining an enclosure to the top
- Bases have leveling screws and holes for bolting to the floor
Documentation & Downloads
Specifications
Additional
- Width (W)
- 457 mm
- Height (H)
- 25 mm
- Thickness (T)
- 1.9 mm
- Material
- Steel, Mild Steel
- Color Code
- ANSI 61
- Leveling Screws
- Included
Depth (D)457 mm
Size18.00 x 18.00 in.
Weight21 lb
ColorGray
FinishPowder Coated
Mounting HolesFor bolting to floor
