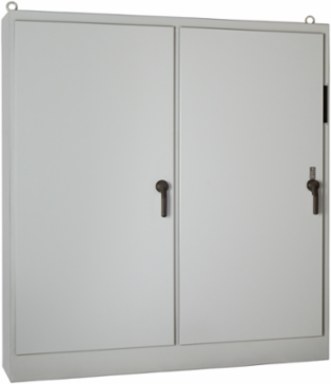

Nvent Hoffman A72XM2818FTCG Heavy-Duty Disconnect Enclosure, 72.12x28.25x18.12 Inch, Steel, NEMA 12
Nvent Hoffman A72XM2818FTCG Heavy-Duty Disconnect Enclosure, 72.12x28.25x18.12 Inch, Steel, NEMA 12
- MPN: A72XM2818FTCG
- UPC: 783510256722
- PPN: HOF-A72XM2818FTCG
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4940.92/ EA
Description
Heavy duty durable multi-bay enclosures design for indoor industrial applications. This Heavy-Duty Disconnect Gray Inside Type 12, A72XM2818FTCG item measures 72.12x28.25x18.12 inch with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models available with panel included or panel sold separately
- FTC models include removable painted 10 gauge steel panels which mount on collar studs
- Includes door hardware
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 718
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- IP Rating
- IP55
- Weight
- 399
- Material
- Steel
- Color
- Gray
Height (H)1,832
Depth (D)460
FinishPowder Coated
Interior ColorGray
Thickness (T)3.04
NEMA Rating12 Indoor, dust-resistant
Panel IncludedYes
Size72.12x28.25x18.12 in
