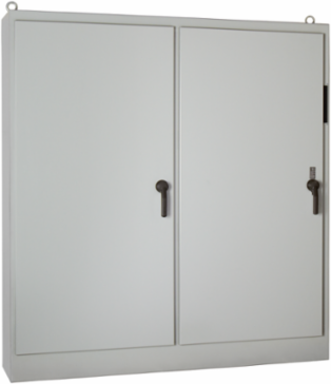

nVent Hoffman A72XM5418FTCLPG Heavy-Duty Disconnect Enclosure 72.12x54.50x18.12 Inch, Steel, NEMA 12

MPN: A72XM5418FTCLPG
UPC: 783510256937
PPN: HOF-A72XM5418FTCLPG
UNSPSC: 39121324

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heavy duty durable multi-bay enclosures design for indoor industrial applications. This Heavy-Duty Disconnect Gray Inside LP Type 12, A72XM5418FTCLPG item measures 72.12x54.50x18.12in with material of Steel color Gray.

Features

Seams continuously welded and ground smooth
Body stiffeners in larger enclosures for extra rigidity
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Removable centerposts permit easy panel installation
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Panel supports
Data pocket is high-impact thermoplastic
Oil-resistant gasket
Master door is far right-hand door on all enclosures
Defeater on primary door requires a screwdriver to open
Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
Models available with panel included or panel sold separately
FTC models include removable painted 10 gauge steel panels which mount on collar studs
Includes door hardware
