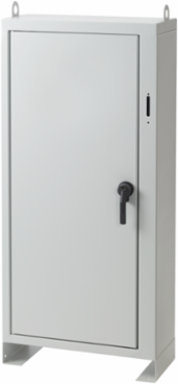

Nvent Hoffman A72XN2718FSLP Free-Stand Disconnect Enclosure Type 1, 72 Inch x 26 Inch x 18 Inch, Steel, Gray
Nvent Hoffman A72XN2718FSLP Free-Stand Disconnect Enclosure Type 1, 72 Inch x 26 Inch x 18 Inch, Steel, Gray
- MPN: A72XN2718FSLP
- UPC: 783510138929
- PPN: HOF-A72XN2718FSLP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3568.92/ EA
Description
Free-Stand Type 1 Disconnect Enclosure for general industrial use. This Free-Stand Disconnect Enclosure Type 1, A72XN2718FSLP item measures 72.00x26.00x18.00 inches with a material of Steel colored Gray.
Features
- 4-in. high 10 gauge steel integral lifting base
- Modified preferred disconnect cutout
- Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Screwdriver defeater in handle on master door
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 660
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- IP Rating
- IP30
- Weight
- 283
- Size
- 72.00x26.00x18.00 in
Height (H)1,829
Depth (D)457
FinishPowder Coated
Thickness (T)1.9
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
