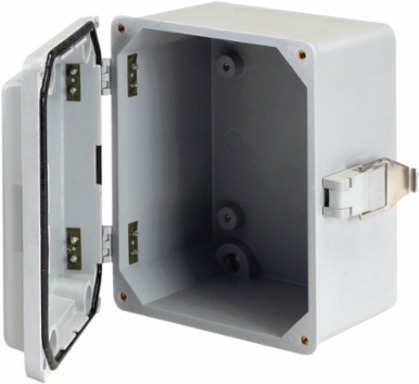

nVent Hoffman A845JFGQRR Hinge Cover Quick-Release Latch 4X, 7.50 Inch x 4.00 Inch x 5.00 Inch, Fiberglass
- MPN: A845JFGQRR
- UPC: 783510412203
- PPN: HOF-A845JFGQRR
- UNSPSC: 39121324
CAD
$326.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Screw/Hinge Cover QR latch Fiberglass Enclosures have a simple design and withstand harsh conditions. This Hinge Cover Quick-Release Latch Type 4X, A845JFGQRR item measures 7.50x4.00x5.00in with material of Fiberglass color Gray.
Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Fiberglass material is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Threaded internal bosses provided for mounting optional panels and terminal block kits
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
- Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
- A Type 316L stainless steel padlock hasp is furnished with each enclosure
- Sealing washers are furnished with enclosure
Documentation & Downloads
Specifications
Key Specifications
| BABA | Yes, BABA Compliant |
|---|---|
| Width (W) | 102 |
| Protection Rating | NEMA Type 12 |
| Color | Light Gray |
| Thickness (T) | 3.8 |
| Latch Type | Quick Release |
| IP Rating | IP66 |
| Material | Fiberglass |
| Cubic Capacity | 151 cubic in |
| Height (H) | 203 |
|---|---|
| Depth (D) | 127 |
| Finish | Smooth Matte |
| Color Code | RAL 7035 |
| Cover Style | Solid |
| Latch Quantity | 1 |
| Weight | 2.8 |
| Size | 7.50x4.00x5.02 in |
| NEMA Rating | 4X Watertight, corrosion-resistant |
