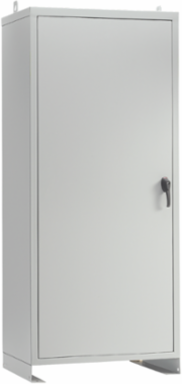

nVent Hoffman A84N3624FSLP Free-Stand Enclosure 84 Inch x 36 Inch x 24 Inch, Steel, NEMA Type 1
- MPN: A84N3624FSLP
- UPC: 783510137366
- PPN: HOF-A84N3624FSLP
- UNSPSC: 39121324
CAD
$3511.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Robust NEMA Type 1 enclosure for general industrial use to protect equipment and employees. This Free-Stand Type 1, A84N3624FSLP item measures 84.00x36.00x24.00 inches with a material of Steel colored Gray.
Features
- Enclosure back is 12 gauge for increased stiffness
- 4-in. high 10 gauge steel integral lifting base
- Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Easily reversible doors on single-door models
- Overlapping doors with no center post on two-door models
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
- Removable back covers
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- Panel Size (D)
- 1,858
- IP Rating
- IP30
- Material
- Steel
- Color
- Gray
Height (H)2,134
Depth (D)610
FinishPowder Coated
Thickness (T)1.9
Panel Size (E)813
Weight255
Size84.00x36.00x24.00 in
NEMA Rating1 Indoor, electrical protection
