Nvent Hoffman

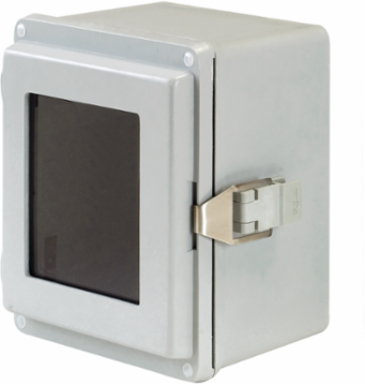

Nvent Hoffman A865JFGQRPWR Hinge Window Cover with Quick-Release Latch 7.50 Inch x 6.00 Inch x 5.20 Inch, Gray Fiberglass, NEMA Type 4X

Hinge Window Cover with Quick-Release Latch 7.50 Inch x 6.00 Inch x 5.20 Inch, Gray Fiberglass, NEMA Type 4X
  • MPN: A865JFGQRPWR
  • UPC: 783510412906
  • PPN: HOF-A865JFGQRPWR
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$585.85/ EA

Description

Screw/Hinge Cover QR latch Fiberglass Enclosures have a simple design and withstand harsh conditions. This Hinge Window Cover Quick-Release Latch Type 4X, A865JFGQRPWR item measures 7.50x6.00x5.20in with material of Fiberglass color Gray.

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
  • A Type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
152
Protection Rating
NEMA Type 12
Color
Light Gray
Thickness (T)
3.8
Latch Type
Quick Release
IP Rating
IP66
Material
Fiberglass
Cubic Capacity
226 cubic in
Height (H)203
Depth (D)127
FinishSmooth Matte
Color CodeRAL 7035
Cover StyleWindow
Latch Quantity1
Weight3.5
Size7.50x6.00x5.03 in
NEMA Rating4X Watertight, corrosion-resistant
