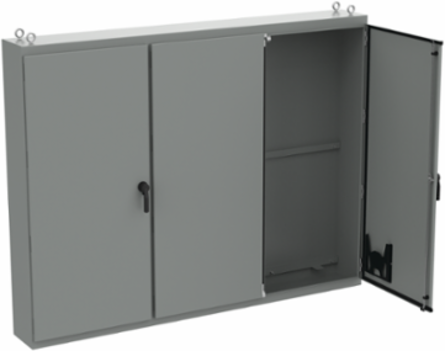

nVent Hoffman A86M3E20LPG Multi-Door NEMA Type 12 Enclosure, 86.12x112.00x20.12 Inch, Steel
- MPN: A86M3E20LPG
- UPC: 783510264345
- PPN: HOF-A86M3E20LPG
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NEMA Type 12 Multidoor Free-Stand enclosure with interlock for use in industiral environments. This Free-Stand Multi-Door Type 12 LP Gray Inside 3Dr, A86M3E20LPG item measures 86.12x112.00x20.12in. with a material of Steel color Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Heavy-duty lifting eyes anchored into reinforced top
- Overlapping, gasketed openings on two-door centerposts
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as primary door; doors can be closed in any order
- Large data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel mounting studs
- Bonding provision on doors
- Provisions for mounting fluorescent lights
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- Width
- 2845 mm (112.00 in)
- Depth
- 511 mm (20.12 in)
- Door Quantity
- 3
- Material
- Steel
- Color
- Gray, ANSI 61
- Door Gasket
- Oil-resistant
- Latches
- Three-point, padlocking handle operated
- Back Stiffeners
- Heavy steel to maintain flatness and rigidity
- Panel Mounting
- Studs included
- Panel Material
- High-impact thermoplastic data pocket
NEMA Rating12, Indoor, dust-resistant
Height2187 mm (86.12 in)
Thickness11 ga
Weight1448 (units not specified)
FinishPowder Coated, ANSI 61 gray polyester paint inside and outside
Lifting Eye Quantity4, heavy-duty, anchored into reinforced top
HingesConcealed, easy-to-remove
Mechanical InterlockStandard with right-hand door as master
SeamsContinuously welded and ground smooth
Door OpeningsOverlapping, gasketed on two-door centerposts; gasketed overlapping doors eliminate need for centerposts
Accessory ProvisionsMounting fluorescent lights
