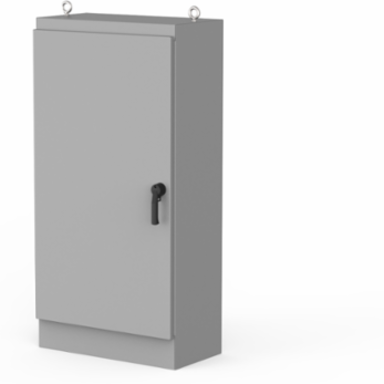

nVent Hoffman A903624FS Freestand Type 12 Enclosure 90.06x36.06x24.06 Inch, Steel, Gray, NEMA 12
- MPN: A903624FS
- UPC: 783510255602
- PPN: HOF-A903624FS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NEMA Type 4, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access White Inside Type 4, A903624FS item measures 90.06x36.06x24.06in. with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Single door type 4 foam in place gasket, double door type 3R strip gasket
- Bonding provision on door
- Provision for mounting LED light
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 12 Indoor, dust-resistant |
|---|---|
| Material | Steel |
| Weight | 475 |
| Width (W) | 916 mm |
| Thickness (T) | 2.66 |
| Color | Gray |
| Finish | Powder coated ANSI 61 gray polyester paint inside and outside |
| Lifting Eye Quantity | 2 |
| Door Gasket | Type 4 foam for single door, Type 3R strip for double door |
| Hinges | Concealed, easy-to-remove stainless steel |
| Latch Type | 3-point, operated by padlocking handle |
| Stiffeners | On back of two-door enclosures for rigidity |
| Bonding Provision | On door |
| IP Rating | IP66 |
|---|---|
| Size | 90.06 36.06 24.06 in |
| Height (H) | 2,288 mm |
| Depth (D) | 611 mm |
| Rack Unit Quantity | 45 |
| Color Code | ANSI 61 |
| Interior Color | White |
| Mounting Channels | Welded horizontally at top, bottom, center |
| Seams | Continuously welded and ground smooth, no holes or knockouts |
| Data Pockets | High-impact thermoplastic 12 12 in. |
| LED Light Provision | Included |
| Panel and Rack Mounting | Optional panels and rack mount angles mountable anywhere along channels |
| Lifting Eyes | Included for easy handling |
