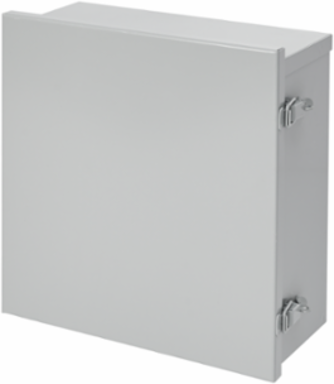

nVent Hoffman A8R64HCLO Drip-Shield Hinged Lift-Off Cover 3R 8.00x6.00x4.00 Inch, Gray Steel
- MPN: A8R64HCLO
- UPC: 783510388607
- PPN: HOF-A8R64HCLO
- UNSPSC: 39121324
CAD
$94.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Hinged Lift-Off Cover Type 3R protects components in outdoor applications. This Drip-Shield Hinged Lift-Off Cover Type 3R, A8R64HCLO item measures 8.00x6.00x4.00 inches with a material of Steel colored Gray.
Features
- Drip-shield top and seam-free sides, front and back
- Galvanized steel lift-off hinges with stainless steel pins
- Provisions for padlocking on each draw pull catch
- Embossed mounting holes on back of enclosure
- Gasketing along top of door
- No knockouts
- Quick-release door latches
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 152 |
| Protection Rating | NEMA Type 3R |
| Color | Gray |
| Body Thickness | 1.52 |
| Mounting (G) | 232 |
| IP Rating | IP32 |
| Weight | 5 |
| Size | 8.00x6.00x4.00 in |
| Height (H) | 203 |
|---|---|
| Depth (D) | 102 |
| Finish | Galvanized |
| Color Code | ANSI 61 |
| Door Thickness | 1.52 |
| Overall Dimensions (L x W) | 257 x 184 |
| Bracket Width | 127 |
| Material | Steel |
| NEMA Rating | 3R Weather-resistant, except dust |
