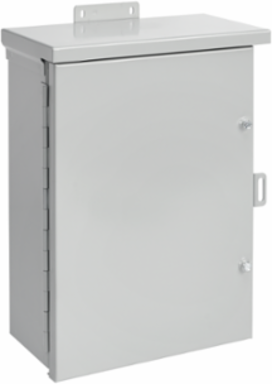

nVent Hoffman A30R2410HCR Medium Drip-Shield Hinged-Cover Type 3R, 30 Inch x 24 Inch x 10 Inch, Steel, Gray
- MPN: A30R2410HCR
- UPC: 783510492892
- PPN: HOF-A30R2410HCR
- UNSPSC: 39121324
CAD
$999.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Medium Drip-Shield Hinge-Cvr Type 3R protects wiring and electrical components in outdoor applications. This Hinge-Cover Medium Type 3R, A30R2410HCR item measures 30.00x24.00x10.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- 16-gauge plated steel continuous hinge has stainless steel pin
- Cover fastened securely with captive plated steel screws
- Collar studs provided for mounting optional panels
- Engineered with a reliable NEMA Type 3R rating (and an IP32 rating), this enclosure provides dependable protection against driving rain, sleet, snow, and external ice formation. The integrated overhanging drip shield top channels water away from the door seam, making it the perfect choice for housing sensitive outdoor control systems, municipal lighting panels, and utility hardware.
- This enclosure measures exactly 30 inches in height, 24 inches in width, and 10 inches in depth (762mm x 610mm x 254mm). The generous depth allows panel builders and industrial electricians to easily mount deep-profile transformers, contactors, and terminal blocks while maintaining standard, code-compliant wire-bending space and airflow clearance.
- Featuring a heavy-duty, padlockable draw pull catch and a stainless steel continuous hinge, the door closes tightly to prevent unauthorized entry while ensuring easy, unhindered access for maintenance technicians. The integrated hasp allows you to secure the panel with standard industrial padlocks, protecting your infrastructure from vandalism and theft in public or remote areas.
- The A30R2410HCR is fully UL 50, 50E Listed (File No. E27567) and CSA Certified for Type 3R applications. It features integrated mounting holes on the back of the enclosure and internal weldnuts for attaching optional subpanels, streamlining your installation on exterior walls or structural columns.
- Hasp and staple provided for padlocking
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 1.9
- Mounting (G x H)
- 787 x 330
- IP Rating
- IP32
- Material
- Steel
- NEMA Rating
- 3R Weather-resistant, except dust
Height (H)762
Depth (D)254
FinishGalvanized
Color CodeANSI 61
Door Thickness1.9
Overall Length (L)813
Weight66
Size30.00x24.00x10.00 in
