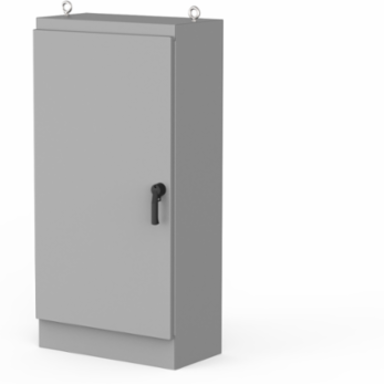

nVent Hoffman A903620FS Freestand Single Access Enclosure, 90.06x36.06x20.06 Inch, Gray Steel, NEMA Type 12
- MPN: A903620FS
- UPC: 783510253103
- PPN: HOF-A903620FS
- UNSPSC: 39121324
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NEMA Type 4, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access Type 4, A903620FS item measures 90.06x36.06x20.06in. with a material of Mild Steel colored Gray/White.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Single door type 4 foam in place gasket, double door type 3R strip gasket
- Bonding provision on door
- Provision for mounting LED light
Documentation & Downloads
Specifications
Additional
| Size | 90.06 × 36.06 × 20.06 in |
|---|---|
| Material | Steel |
| IP Rating | IP66 |
| Height (H) | 2,288 |
| Thickness (T) | 2.66 |
| Color | Gray |
| Rack Unit Quantity | 45 |
| Steel Gauge | 12 gauge |
| Seams | Continuously welded and ground smooth, no holes or knockouts |
| Hinges | Concealed, easy-to-remove |
| Internal Mounting Channels | Welded horizontally to sides at top, bottom, and center |
| Stiffeners | On back of two-door enclosures maintain flatness and increase rigidity |
| Provision | For mounting LED light and bonding on door |
| BABA | Contact Manufacturer |
| Weight | 409 |
|---|---|
| Protection Rating | NEMA Type 4, 12 Indoor, dust-resistant |
| Width (W) | 916 |
| Depth (D) | 510 |
| Finish | Powder Coated |
| Interior Color | White |
| Lifting Eye Quantity | 2 |
| Access Type | Single door, front and/or rear Access |
| Latches | 3-point latches operated by padlocking handle |
| Door Gasket | Type 4 foam in place gasket |
| Data Pockets | High-impact thermoplastic, 12.00 × 12.00 in |
| Lifting Eyes | 2 |
| Color Code | ANSI 61 |
