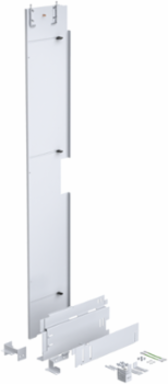

nVent Hoffman A90BP24 Universal Barrier Panel for Unibody Free-stand, fits A=90 and C=24, White, Steel
- MPN: A90BP24
- UPC: 783510384067
- PPN: HOF-A90BP24
- UNSPSC: 39121334
CAD
$1090.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Universal Barrier Panel for Unibody Free-stand, fits A=90 and C=24, White, Steel
Features
- Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
- Top and bottom barrier plates included to provide a full-depth separation
- Main barrier plate has a 6-inch extender to add flexibility when mounting
- Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
- Ground stud on the main barrier plate
- Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
- Mount to the welded or removable centerpost of an enclosure; the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
- Mounting hardware and brackets included
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 604
- Thickness (T)
- 1.9
- Weight
- 54.94
- Material
- Mild Steel
- Size
- 89.80 x 23.80 x 2.60
- Mounting
- Mounts to centerpost
Height (H)66
FinishPowder Coated
Fits Enclosure (H x W)90 x 24
Works WithNEMA
Cable EntryNo
ColorWhite
NEMA RatingType 1
