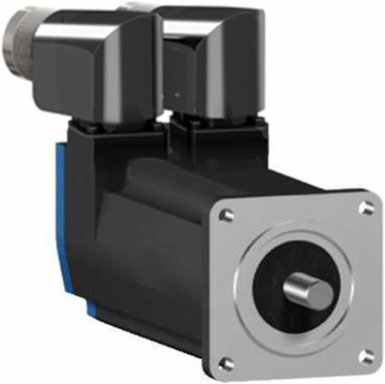

Schneider Electric BSH0552P21F2A Servo Motor, 0.9 N.m Torque, 4000 rpm, 55 mm Flange, IP65
- MPN: BSH0552P21F2A
- PPN: SCH-BSH0552P21F2A
CAD
$1781.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric is engineered for precision and reliability, featuring a robust 0.9 N.m of torque and an impressive rotational speed of 4000 rpm. With a 55 mm flange size, it is designed to fit comfortably in various automation systems while maintaining durability with an IP65 rating, ensuring protection against dust and water. Its high-performance capability makes it an ideal choice for applications requiring accurate motion control, enhancing the efficiency and effectiveness of your automated processes.
Documentation & Downloads
Specifications
Additional
- Torque
- 0.9 N.m, 0.8 N.m, 0.65 N.m, 0.75 N.m, 2.17 N.m, 2.7 N.m
- Nominal Output Power
- 250 W, 310 W, 400 W
- Maximum Current Irms
- 4.8 A, 5.9 A
- Phase
- Three phase, single phase
- Length
- 181 mm (7.13 in)
- Shaft Length
- 20 mm (0.79 in)
- Circle Diameter of Mounting Holes
- 63 mm (2.48 in)
- Centring Collar Diameter
- 40 mm (1.57 in)
- Material
- Not specified
- Mounting Support
- International standard flange
- IP Rating
- IP65 standard; IP67 with IP67 kit
- Mercury Free
- Yes
- WEEE Compliance
- Yes
- Country of Origin
- Germany (DE)
Speed3000 rpm, 4000 rpm, 6000 rpm, maximum mechanical speed 9000 rpm
Continuous Stall Current1.2 A
Voltage480 V, 400 V, 200...240 V, 230 V, 380...480 V
Flange Size55 mm
Shaft Diameter9 mm (0.35 in)
Number of Mounting Holes4
Mounting Hole Diameter5.5 mm (0.22 in)
Centring Collar Depth2 mm (0.08 in)
Type Of CoolingNatural convection
Electrical ConnectionRotatable right-angled connectors
RoHS ComplianceRoHS Compliant; Pro-active compliance (Product out of EU RoHS legal scope)
PVC FreeYes
Warranty18 months
