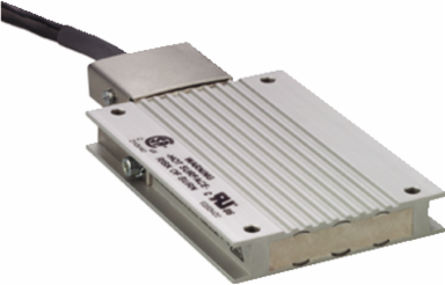

Telemecanique Sensors VW3A7608R30 Braking Resistor 100 Ohm 100 W 3 Meter IP65
- MPN: VW3A7608R30
- PPN: SCH-VW3A7608R30
CAD
$554.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This braking resistor allows your drive to operate while braking to a standstill or during slowdown braking. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 72Ohms and a cable length of 3m. Its protection index is IP65. It is compatible with Altivar Machine ATV320. It weighs 0.76kg. This resistor is designed to be mounted on the outside of the enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Ohmic Value
- 100 Ohm
- Product Compatibility
- ATV32H018M2 || ATV32H037M2 || ATV32H037N4 || ATV32H055M2 || ATV32H055N4 || ATV32H075M2 || ATV32H075N4 || ATV32HU11N4 || ATV32HU15N4 || ATV32HU22N4 || variable speed drive ATV320 0.18 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 200...240 V, single phase || variable speed drive ATV320 0.55 kW, 200...240 V, single phase || variable speed drive ATV320 0.75 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 380...500 V, three phase || variable speed drive ATV320 0.55 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 380...500 V, three phase || variable speed drive ATV320 1.1 kW, 380...500 V, three phase || variable speed drive ATV320 1.5 kW, 380...500 V, three phase || variable speed drive ATV320 2.2 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 525...600 V, three phase || variable speed drive ATV320 1.5 kW, 525...600 V, three phase || variable speed drive ATV320 2.2 kW, 525...600 V, three phase || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW || motion servo drive LXM16D 0.1 kW, 200...230 V, single phase || motion servo drive LXM16D 0.2 kW, 200...230 V, single phase || motion servo drive LXM16D 0.4 kW, 200...230 V, single phase || motion servo drive LXM16D 0.75 kW, 200...230 V, single phase || motion servo drive LXM16D 1 kW, 200...230 V, single phase || motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
- Product Or Component Type
- braking resistor
Range Of ProductLexium || Altivar
Range CompatibilityLexium 52 || Lexium 15 || Altivar Machine ATV320 || Lexium 32i || Lexium 32 || Altivar 32 || Easy Altivar 310L || Easy Lexium 16
Complementary
- Continuous Power
- 100 W
- Protection Type
- thermal protection via the servo drive
- Average Power Available
- 25 W 50 °C
Cable Length3 m
Energy Peak2700 J 480 V || 3000 J 400 V || 4500 J 230 V || 4400 J 115 V
Net Weight0.76 kg
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP65
Ambient Air Temperature For Storage-25-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
