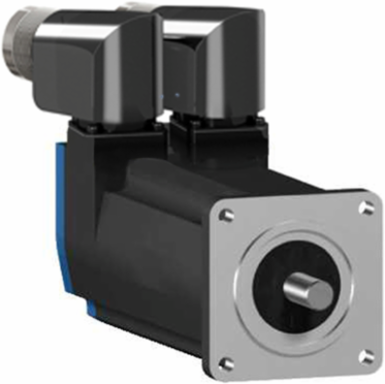

Schneider Electric BSH0552P21A2A Lexium 05 Servo Motor 0.9N.m, 4000rpm, 55mm, IP65
- MPN: BSH0552P21A2A
- PPN: SCH-BSH0552P21A2A
CAD
$1382.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 05 Servo Motor from Schneider Electric is engineered for high-performance applications in motion control, making it a reliable choice for automation tasks. With a powerful torque rating of 0.9N.m and an impressive speed of up to 4000rpm, this motor delivers precise and efficient operation. Encased in a robust IP65 rated housing, it is designed to withstand challenging environments, ensuring durability in various industrial settings. Its compact 55mm design allows for seamless integration into your systems, making it an essential component for any modern automation project.
Documentation & Downloads
Specifications
Additional
- Torque
- 0.9 N.m
- Peak Stall Torque
- 2.5 N.m
- Maximum Permanent Current
- 4.8 A
- Switching Frequency
- 8 kHz
- Maximum Mechanical Speed
- 9000 rpm
- Continuous Power
- 0.67 W
- Centring Collar Diameter
- 40 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 63 mm
- Shaft Length
- 20 mm
- Product Or Component Type
- servo motor
- Number Of Motor Stacks
- 2
- Feedback Type
- single turn SinCos Hiperface
- Stator Resistance
- 17.4 Ohm 20 °C
- Stator Electrical Time Constant
- 2.03 ms 20 °C
- Type Of Cooling
- natural convection
- Electrical Connection
- rotatable right-angled connectors
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Sustainable Offer Status
- Green Premium product
- Device Short Name
- BSH
- Second Shaft
- without second shaft end
- Range Compatibility
- Lexium 05, Lexium 32, Lexium 15
Speed4000 rpm
Continuous Stall Current1.2 A
Maximum Current Irms4.8 A
Nominal Speed6000 rpm
Nominal Output Power400 W
Length154.4 mm
Centring Collar Depth2 mm
Mounting Holes Diameter5.5 mm
Shaft Diameter9 mm
Motor Flange Size55 mm
Phasethree phase
Number Of Motor Poles6
Rotor Inertia0.096 kg.cm²
Stator Inductance35.3 mH 20 °C
IP Degree Of ProtectionIP65 standard (IP67 with kit)
Mounting Supportinternational standard flange
Eu Rohs DirectivePro-active compliance (out of EU RoHS scope)
Mercury FreeYes
China Rohs RegulationX
WeeeEU market waste collection required
Warranty18 months
Circularity ProfileN/A
Speed Feedback Resolution131072 points/turn
Product CompatibilityMultiple LXM models
