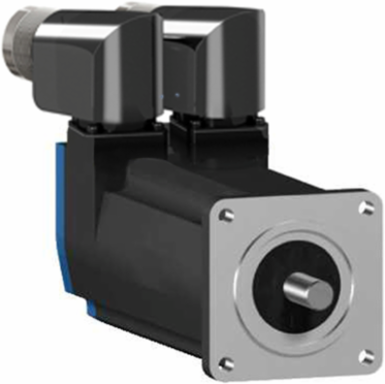

Schneider Electric BSH0552T32A2A Lexium 05 AC Servo Motor 0.9N.m 6000rpm Keyed Shaft IP65
- MPN: BSH0552T32A2A
- PPN: SCH-BSH0552T32A2A
CAD
$2412.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and efficiency, the Lexium 05 AC Servo Motor from Schneider Electric stands out with its impressive 0.9N.m torque and a maximum speed of 6000rpm, making it ideal for demanding automation and motion control applications. Designed with a keyed shaft and an IP65 rating, this servo motor offers excellent protection against dust and water, ensuring reliable performance in various industrial environments. With its robust construction and advanced technology, this servo motor is essential for enhancing control in your mechanical systems.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 0.9 N.m (7.97 Lbf.In)
- Peak Stall Torque
- 2.7 N.m (23.90 Lbf.In)
- Nominal Speed
- 6000 rpm
- Continuous Stall Current
- 2.2 A
- Voltage
- 480 V
- Switching Frequency
- 8 kHz
- Shaft Diameter
- 9 mm (0.35 in)
- Key Width
- 12 mm (0.47 in)
- Number of Motor Stacks
- 2
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 63 mm (2.48 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Material
- PVC Free
- Shaft Type
- Keyed
- Degree of Protection
- IP65 standard (IP67 with IP67 kit)
- Compliance
- Green Premium, EU RoHS, China RoHS, REACh, RoHS Exemption, Mercury Free, PVC Free
- Warranty
- 18 months
Continuous Stall Torque0.9 N.m (7.97 Lbf.In)
Nominal Output Power450 W
Maximum Mechanical Speed9000 rpm
Maximum Current Irms8.8 A
PhaseThree phase
Length154.4 mm (6.08 in)
Shaft Length20 mm (0.79 in)
Motor Flange Size55 mm (2.17 in)
Number of Motor Poles6
Mounting Holes Diameter5.5 mm (0.22 in)
Centring Collar Diameter40 mm (1.57 in)
Net Weight1.5 kg (3.31 lb)
Cooling TypeNatural convection
Feedback TypeMultiturn SinCos Hiperface
Electrical ConnectionRotatable right-angled connectors
Country of OriginGermany (DE)
