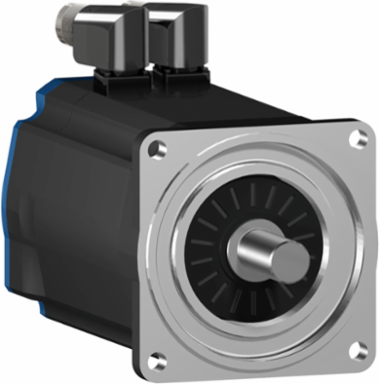

Schneider Electric BSH1002P22F2A AC Servo Motor, 3.4 Nm, 2500 RPM, 6.3 kg, IP65, with Brake
- MPN: BSH1002P22F2A
- PPN: SCH-BSH1002P22F2A
CAD
$3459.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The AC servo motor from Schneider Electric exemplifies precision and efficiency in motion control applications. With a robust torque rating of 3.4 Nm and an impressive speed of up to 2500 RPM, this motor is engineered to meet the demanding requirements of industrial automation. Its IP65 rating ensures reliable performance in challenging environments, while the integrated brake adds an extra layer of safety and functionality. Designed for seamless integration into automation systems, this servo motor is a vital component for achieving effective motion control in various applications.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 950 W
- Peak Stall Torque
- 9.39 N.m
- Maximum Current Irms
- 17.1 A
- Voltage
- 480 V
- Torque
- 3.4 N.m
- Brake
- Integrated
- Maximum Radial Force
- 620 N at 4000 rpm
- Length
- 235.5 mm
- Shaft Diameter
- 19 mm (0.75 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Number of Motor Poles
- 8
- Material
- Not specified
- Feedback Type
- Multiturn SinCos Hiperface
- Compliance
- RoHS, REACh, China RoHS
- Warranty
- 18 months
Continuous Stall Torque4.5 N.m
Continuous Stall Current4.8 A
Speed2500 rpm
PhaseThree phase
Holding Torque9 N.m
Switching Frequency8 kHz
Maximum Axial Force0.2 x Radial Force
Weight6.3 kg
Shaft Length40 mm (1.57 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes115 mm (4.53 in)
Rotor Inertia2.928 kg.cm²
IP RatingIP65 standard, IP67 with kit
Type of CoolingNatural convection
Country of OriginGermany (DE)
