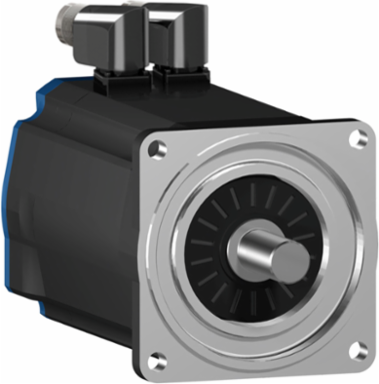

Schneider Electric BSH1002T32F2A AC Servo Motor, 5.5 N·m, 4000 RPM, Keyed Shaft, IP65
- MPN: BSH1002T32F2A
- PPN: SCH-BSH1002T32F2A
CAD
$3562.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BSH1002T32F2A AC Servo Motor stands out in the realm of automation and motion control, offering a robust performance with its impressive torque of 5.5 N·m and a high rotational speed of 4000 RPM. Engineered for precision and efficiency, this servo motor features a keyed shaft that ensures reliable coupling with various mechanisms and applications. With an IP65 rating, it is highly resistant to dust and water, making it ideal for deployment in demanding industrial environments. This motor is designed to meet the rigorous needs of modern automation systems, providing seamless control and enhanced performance in motion applications.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 16.4 N.m max
- Nominal Torque
- 3.7 to 4.4 N.m
- Continuous Power
- 2.51 W
- Nominal Speed
- 3000 to 4000 rpm
- Continuous Stall Current
- 9.9 A
- Voltage
- 480 V
- Shaft End
- keyed
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Length
- 235.5 mm (9.27 in)
- Number of Motor Stacks
- 2
- Back EMF Constant
- 37 V/krpm at 120 6C
- Stator Resistance
- 0.56 Ohm at 20 6C
- Stator Electrical Time Constant
- 5.36 ms at 20 6C
- Maximum Axial Force
- 0.2 x Radial Force
- Type of Cooling
- natural convection
- Degree of Protection
- IP65 standard; IP67 with kit
Continuous Stall Torque5.8 N.m max
Nominal Output Power1400 to 1700 W
Maximum Mechanical Speed6000 rpm
Maximum Current Irms30 to 35.4 A
Switching Frequency8 kHz
Phasethree phase
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes115 mm (4.53 in)
Number of Motor Poles8
Torque Constant0.59 N.m/A at 120 6C
Rotor Inertia2.928 kg.cm8
Stator Inductance3 mH at 20 6C
Maximum Radial Force620 N at 4000 rpm
Brake Pull-in Power18 W
Holding Torque9 N.m with holding brake
ComplianceEU RoHS, China RoHS, Mercury Free, PVC free, WEEE
